The ultra-lightweight Prevelo Zulu Four packs high-performance mountain bike features into a 24-inch wheel size package. Every component is the real deal and is carefully chosen to provide the lightest and best-performing bike for young riders ready to tear up the trails.
Use
Dirt path, single-track
Wheel Size
24 in
Age
~ 8 to 11 years
Type
Mountain Bike
Weight
22 lbs
Inseam
23" to 29"
Components
| Frame | Lightweight Triple-butted 6061 Aluminum, UDH Compatible Thru-Axle Dropout, with Internal Cable Routing and Low Center of Gravity Trail Geometry |
|---|---|
| Fork | RST First 24 AIR - 100mm travel - lockout and adjustable rebound / Thru-Axle |
| Seat Clamp | Aluminum with Toolless Adjustment |
| Brakes | Tektro J285 Hydraulic Disc |
| Derailleur | Microshift Advent X AM V2 |
| Shifter | 10 speed Microshift Advent X Pro |
| Freewheel / Cassette | 10 speed 11-48t Advent X G-Series |
| Crank | 130mm HEIR Direct Mount 2-piece with Alloy Spindle |
| Chainring | 28t 6mm Offset Narrow-Wide CNC Aluminum |
| Bottom Bracket | External BSA 73mm |
| Headset | 1⅛" Integrated Sealed Cartridge Threadless |
| Rims | HEIR i27 Asymmetrical Tubeless Ready Pre-Taped |
| Front Hub | 15x100 28h Sealed Cartridge / Thru-Axle |
| Rear Hub | 12x142 28h Sealed Cartridge w/ quick engaging 6 pawl freehub / 180 points of engagement / Thru-Axle |
| Tires | Kenda Booster Pro 24 x 2.2 Tubeless Ready |
| Saddle | HEIR Pivotal |
| Seat Post | ⌀31.6mm alloy Pivotal |
| Handlebar | HEIR Lightweight Aluminum 31.8, 620mm wide, 19mm Grip Diameter |
| Stem | Lightweight Aluminum 31.8, 35mm Extension |
| Grips | HEIR 110mm wide 19mm Lock-On |
| Pedals | Composite Big Kid, 9/16 Crmo Spindle |
| Version | MK II |
Measurements
| Weight | 22 lbs |
|---|---|
| Recommended Inseam | 23" to 29" |
| Minimum Saddle Height | 24.8 in / 630 mm |
| Maximum Saddle Height | 31.1 in / 790 mm |
| Gain Ratio | 1.39 - 6.09 |
| Max Tire Width | 2.4 in |
Geometry
| Wheel Diameter | 24 in |
|---|---|
| Wheelbase | 38.9 in / 989 mm |
| Chain Stay Length | 15 in / 380 mm |
| Head Angle | 66° |
| Seat Tube Angle | 74° |
| Seat Tube Length | 12.2 in / 310 mm |
| Effective Top Tube | 19.7 in / 500 mm |
| Bottom Bracket Height | 10.2 in / 260 mm |
| Bottom Bracket Drop | 1.8 in / 45 mm |
| Stack | 21.3 in / 541 mm |
| Standover | 22.8 in / 580 mm |
| Q Factor | 170mm |
| Reach | 13.5 in / 344 mm |
Shipping Weights & Dimensions
| Box Dimensions | 52 in x 9 in x 27.5 in |
|---|---|
| Shipping Weight | 33 lb |
Specifications and components are subject to variations and change without notice.
Lightweight Wide Range Drivetrain

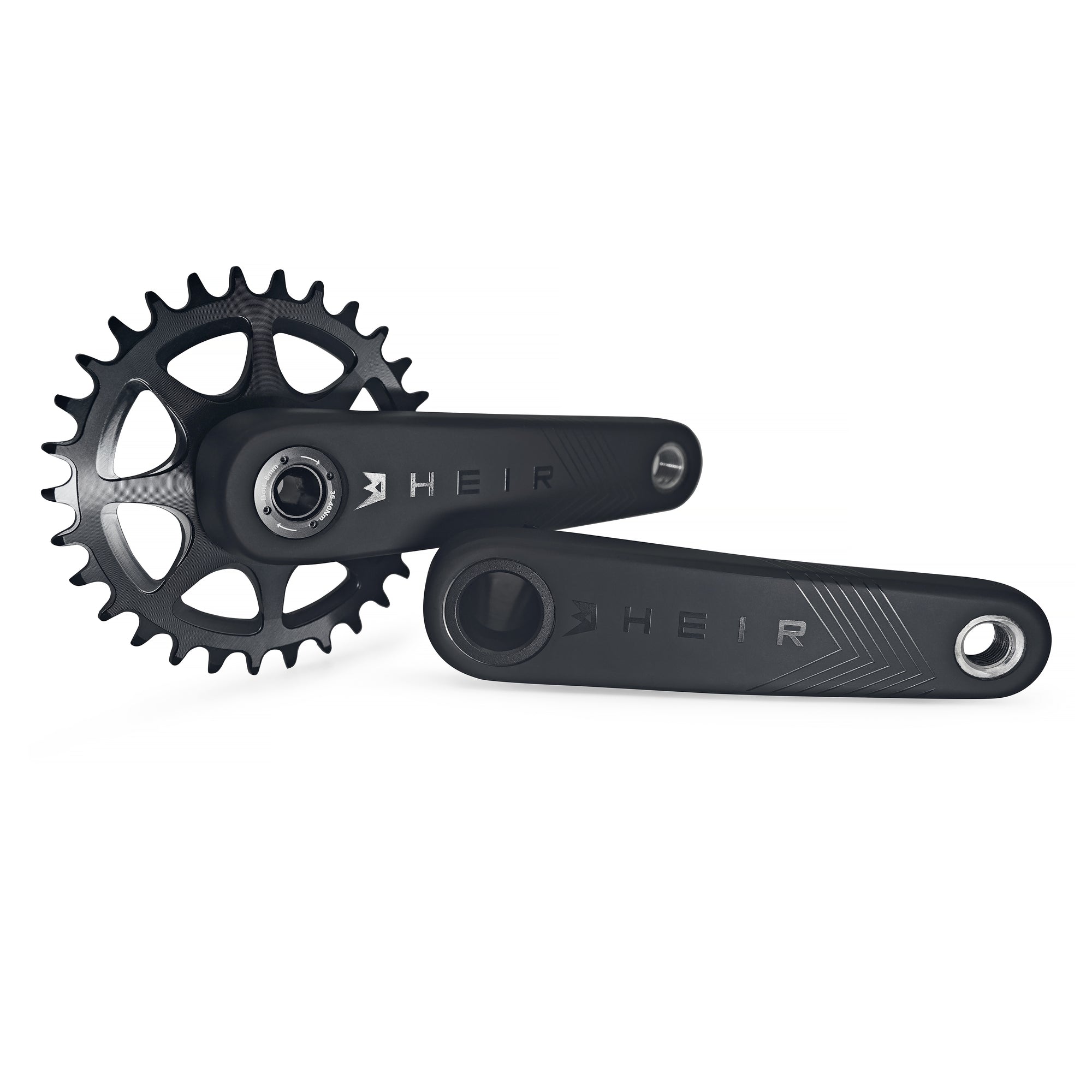

Kid Optimized Crank
Confidence Inspiring Trail Geometry
Pivotal Saddle
Lightweight Tubeless Ready Heir Wheels
Ergonomic Control Center
