At a glance
- Use
- Streets, paths and light trails
- Wheel Size
- 26 in
- Age
- 9 to 13 years
- Type
- All-purpose Bike
- Weight
- 21.5 lbs(without pedals)
- Inseam
- 25" to 30"

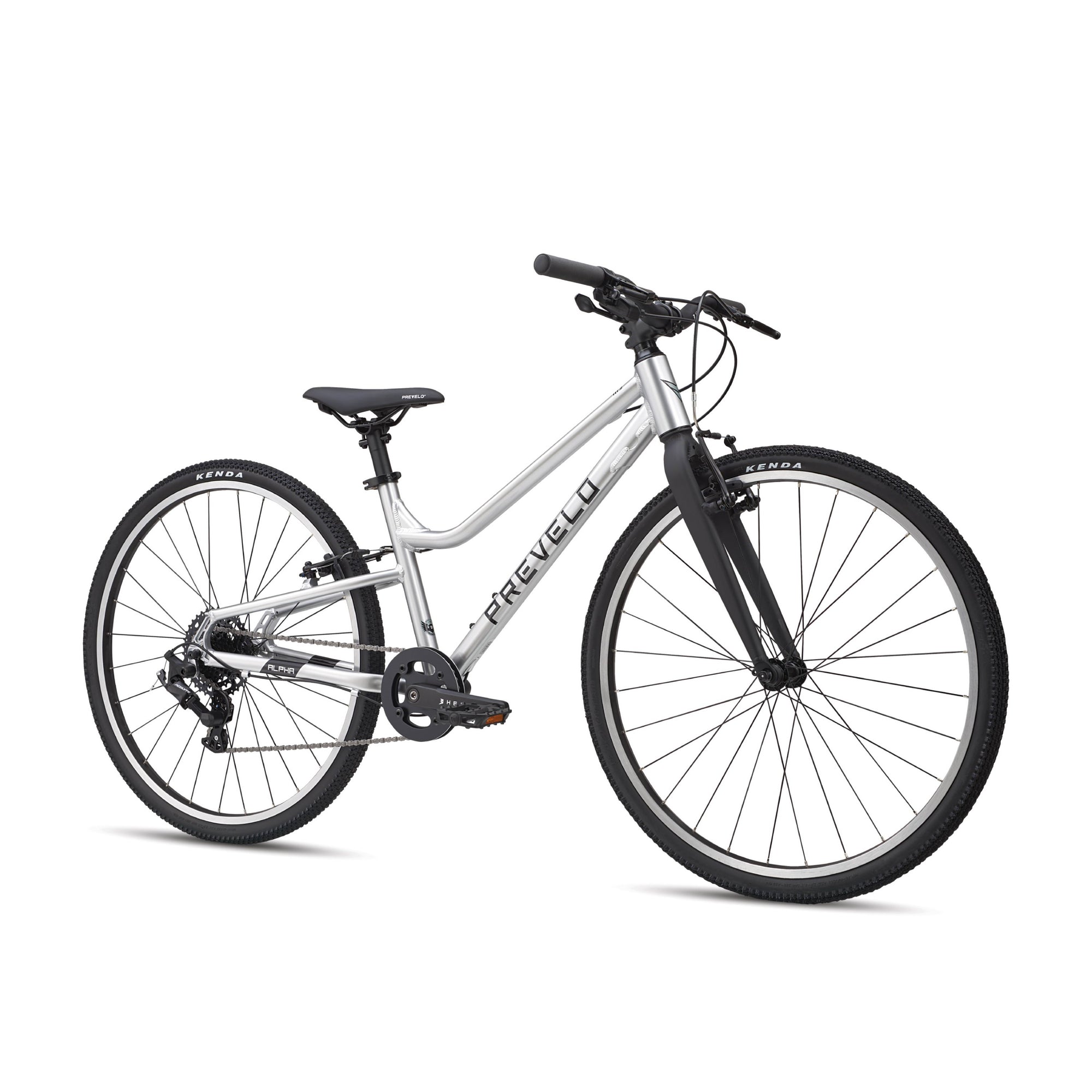

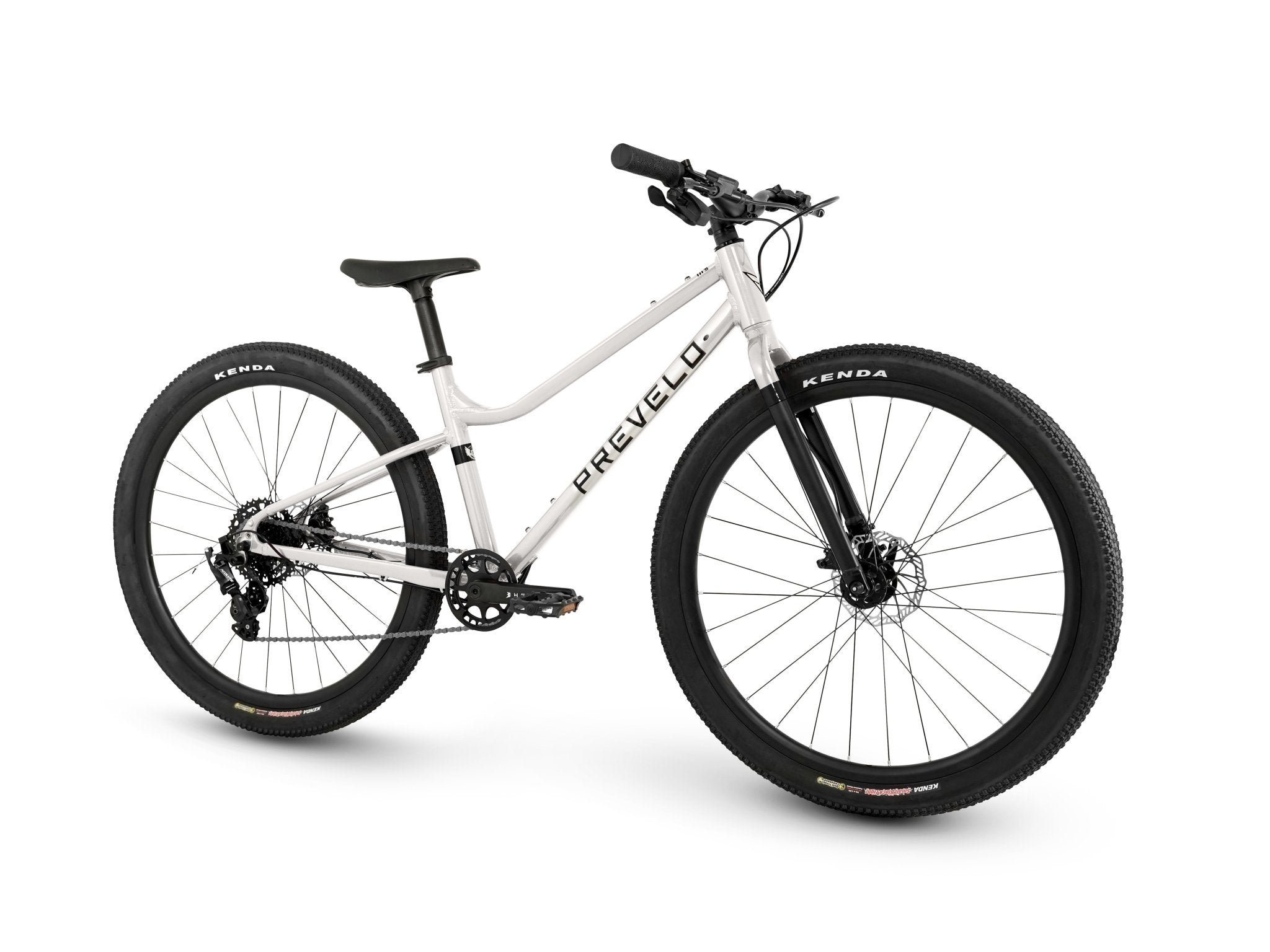

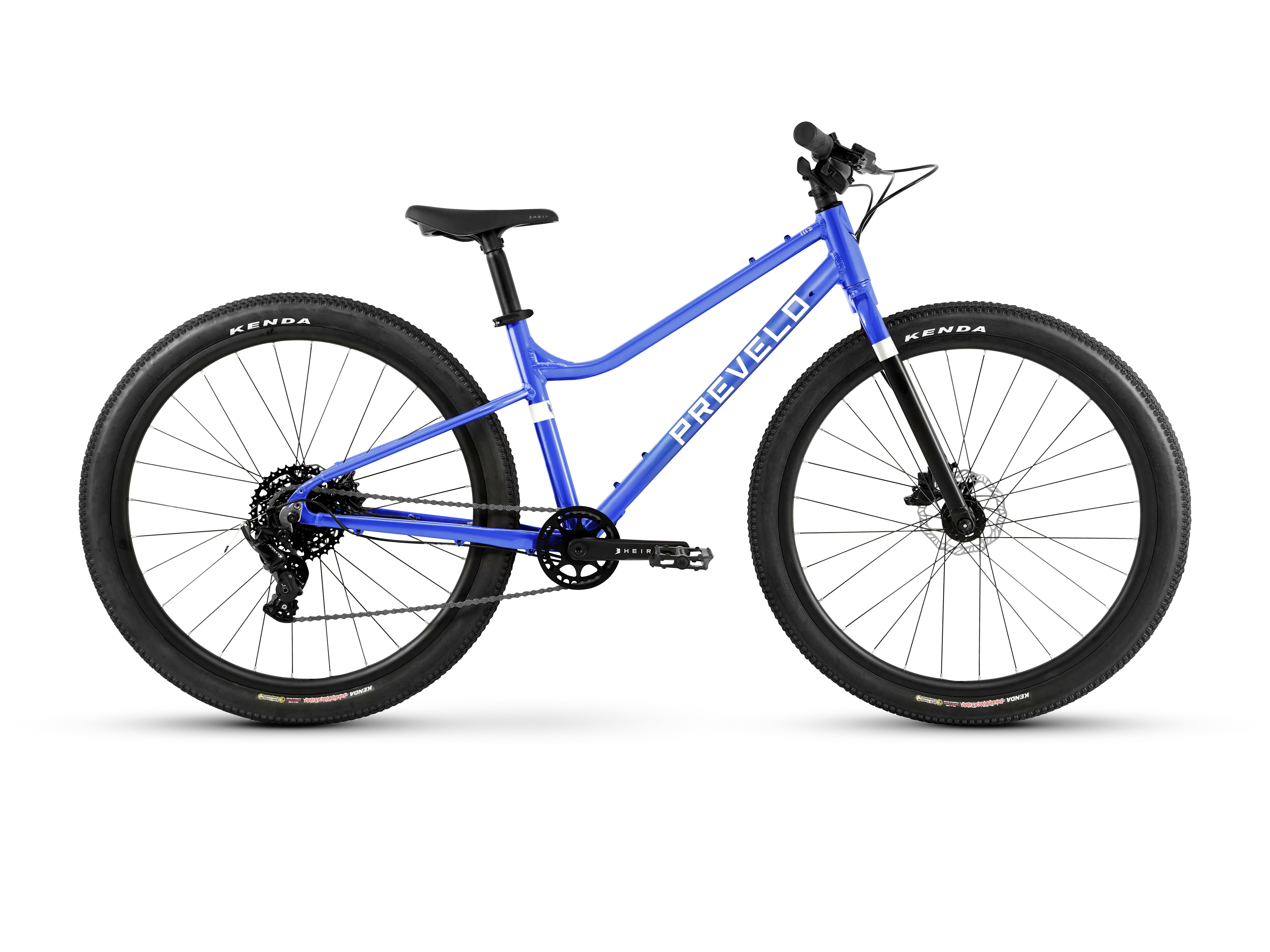

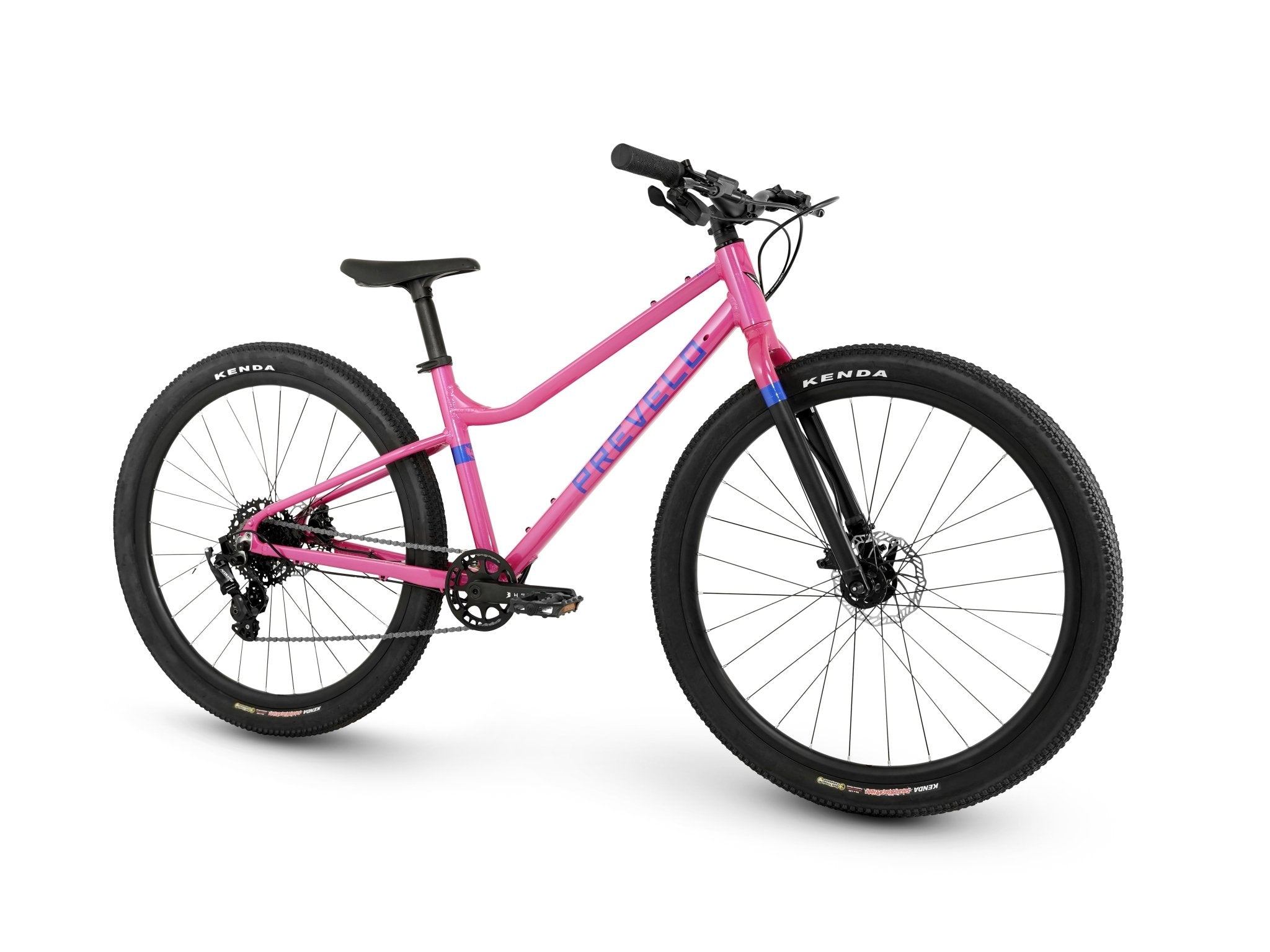

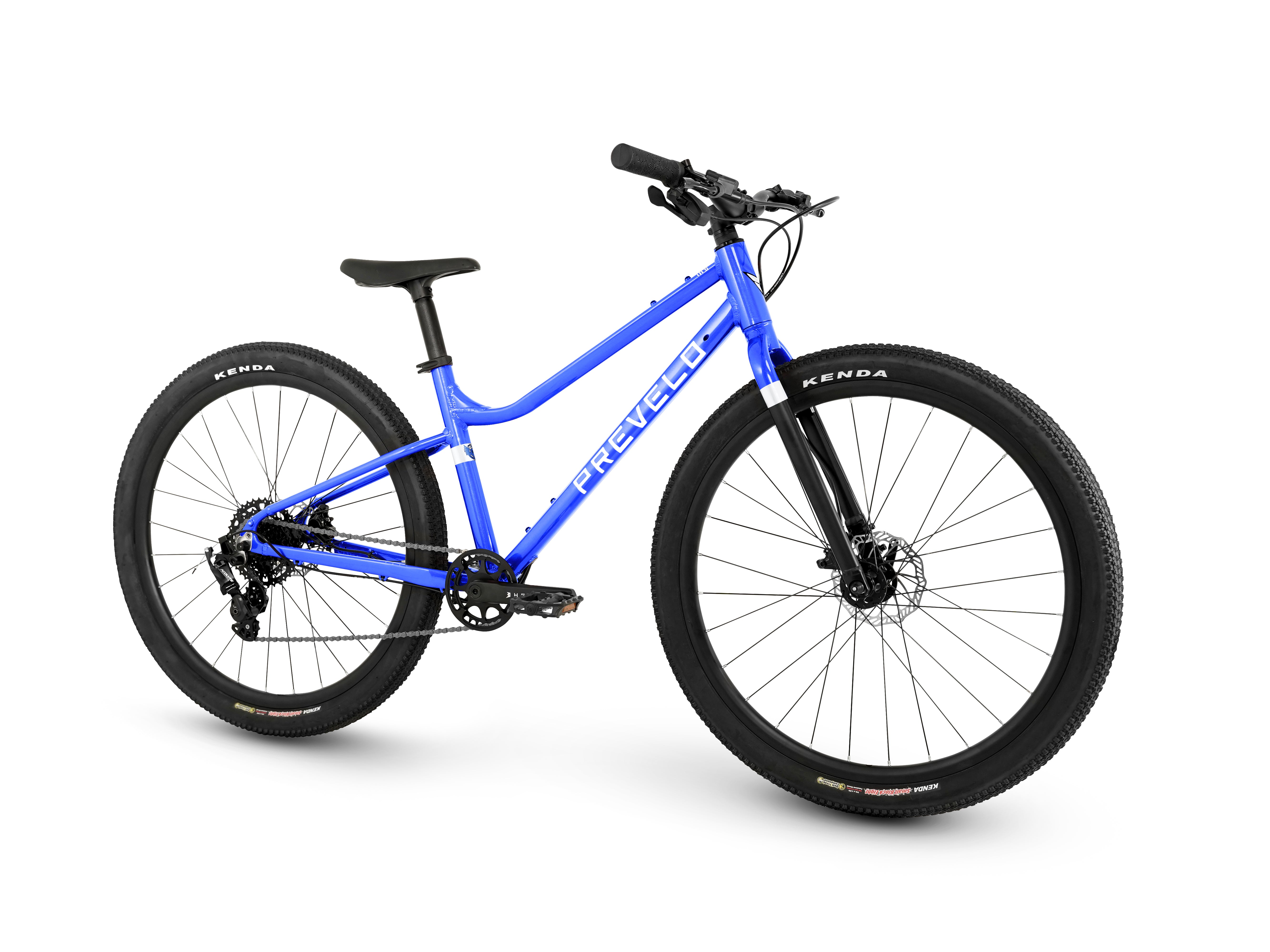

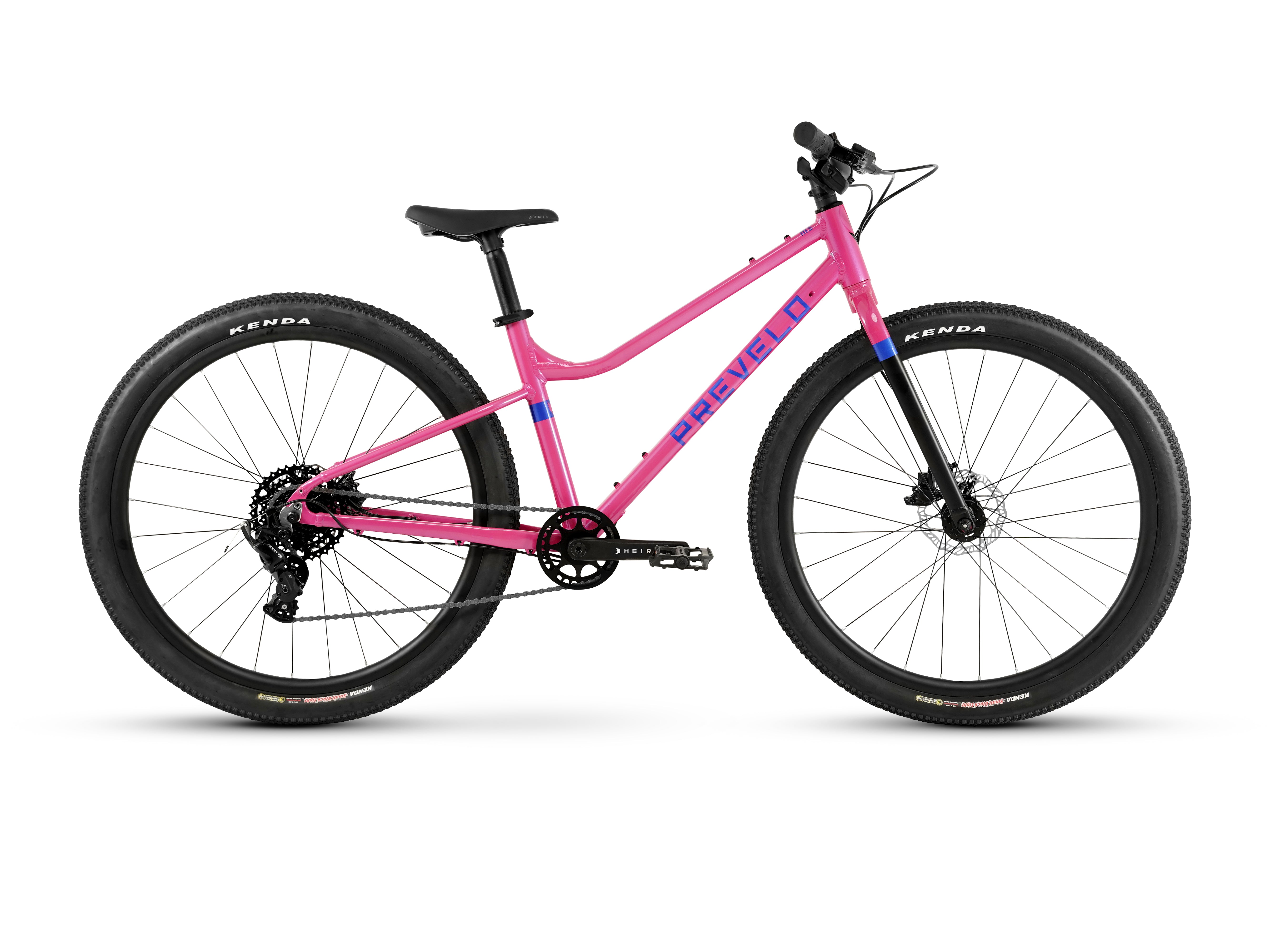

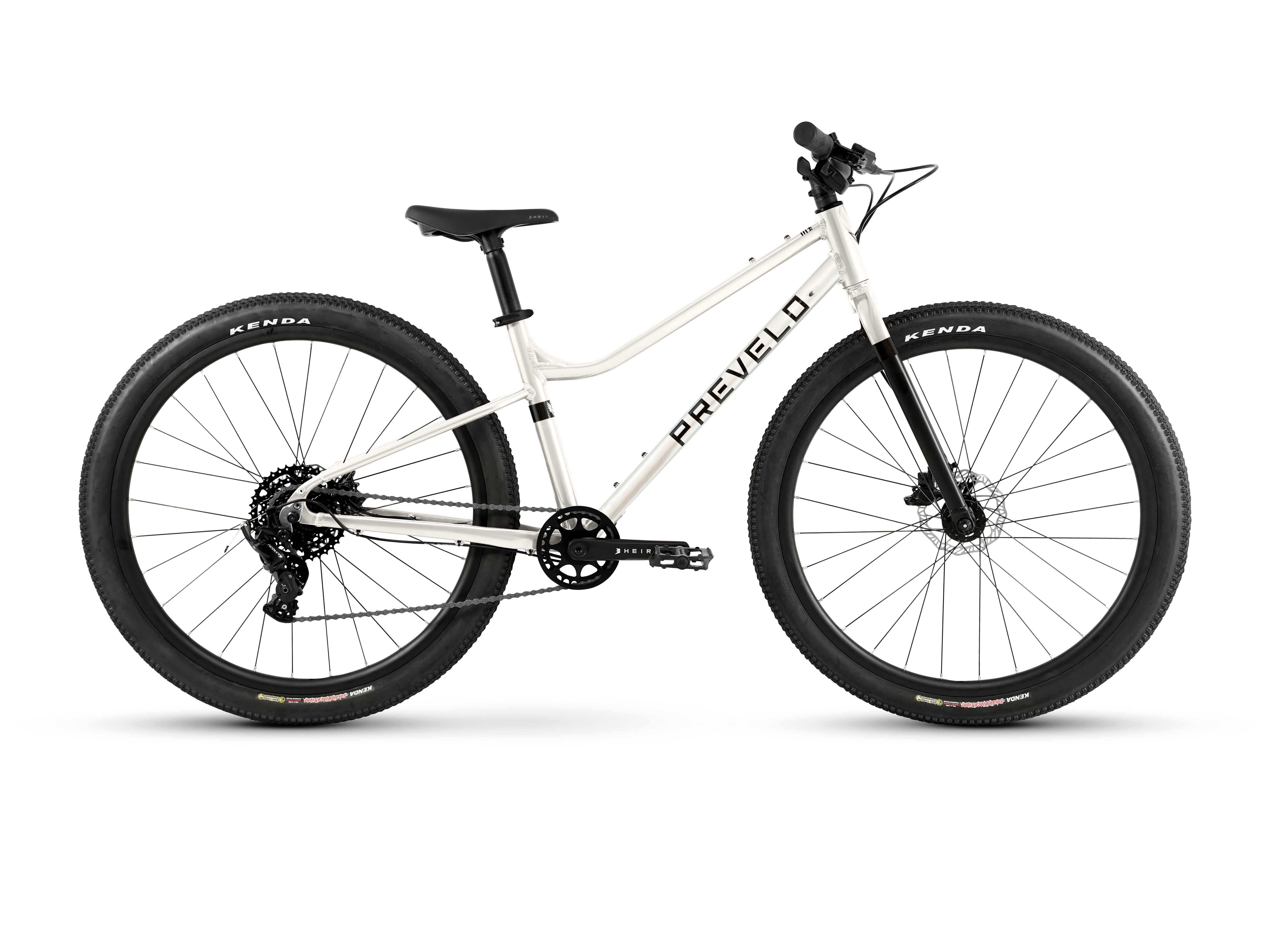

The Prevelo Alpha Five is a 26-inch kids' bike and the largest in the Alpha range, the step up from the 24-inch Alpha Four. Built for adventurous riders ages 9 to 13, at 21.5 pounds it offers serious all-terrain performance with an 8-speed Microshift Acolyte geared drivetrain and hydraulic disc brakes. A 2026 NY Product Design Award Gold winner, it's ready for long paved rides and light trails alike. Fits inseams 25 to 30 inches.
Components

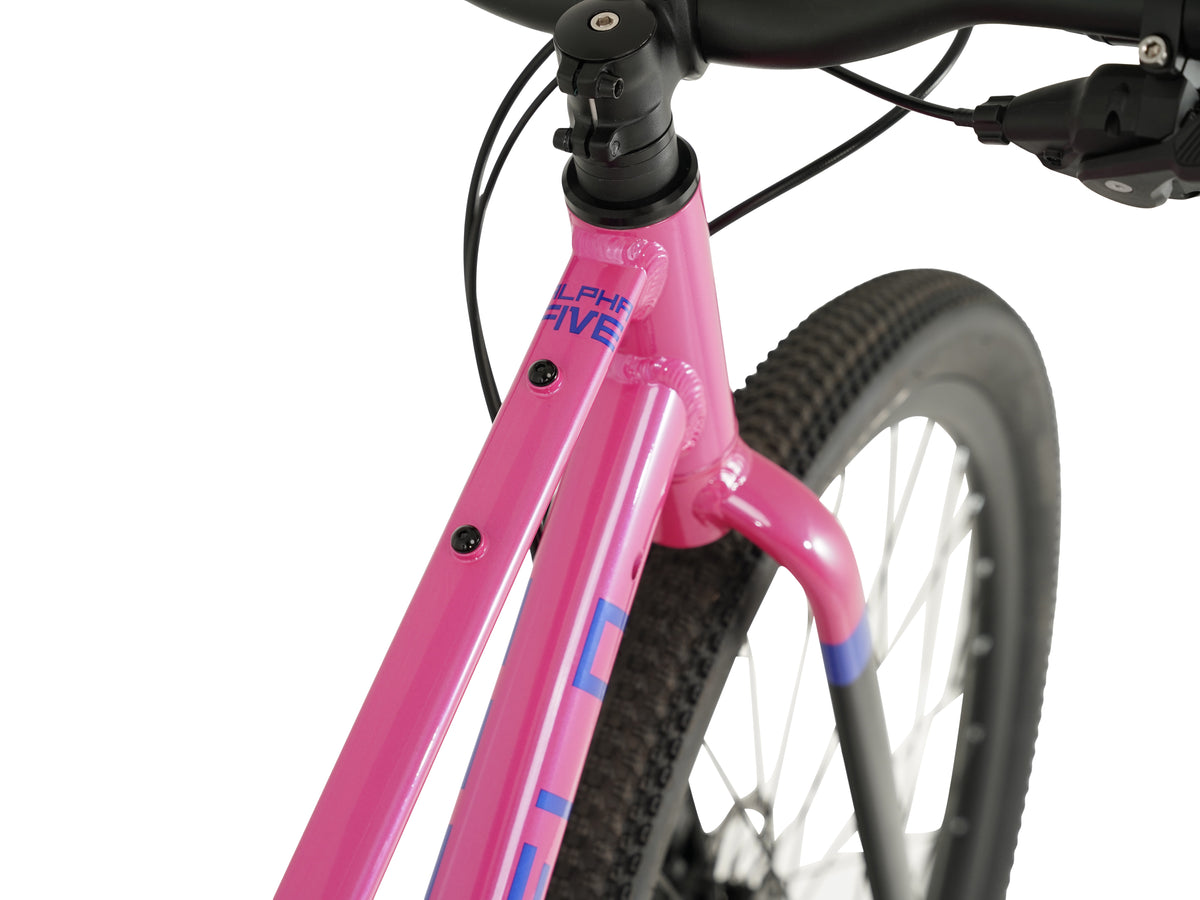

| Frame | Lightweight Triple Butted 6061 Aluminum. Low Center of Gravity, Kid Specific Geometry. Internally routed Cables. 3D Forged Dropouts. Dropper Post Compatible. |
|---|---|
| Fork | Bladed Aluminum Legs with 1 1/8" Aluminum Steer tube |
| Seat Clamp | Aluminum Quick Release |
| Brakes | Promax Hydraulic Disc Brakes |

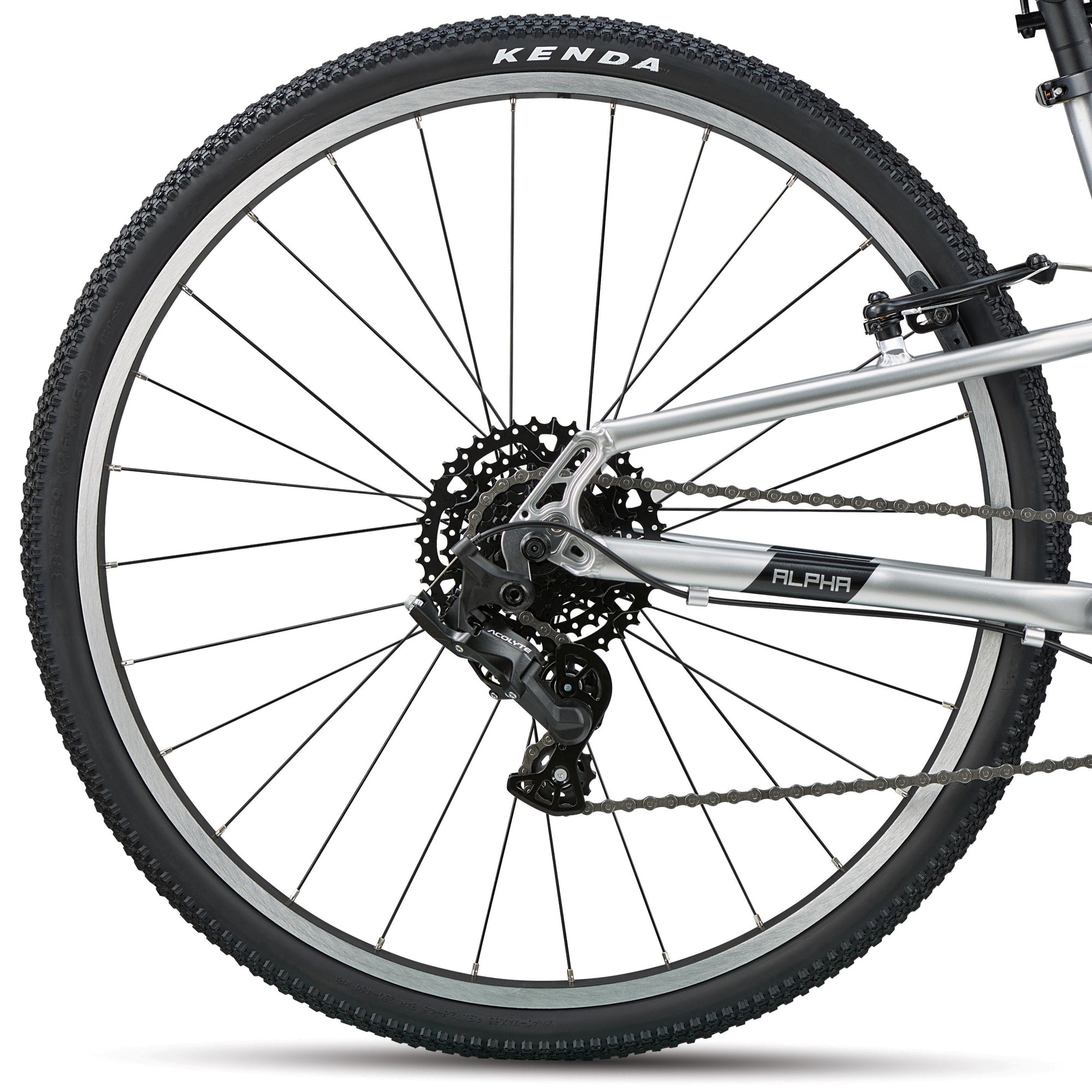

| Derailleur | Microshift Acolyte Super Short with Springlock chain retention system |
| Shifter | 8 speed Microshift Acolyte Quick Trigger |
| Freewheel / Cassette | 8 speed 11-38t Microshift H083 |

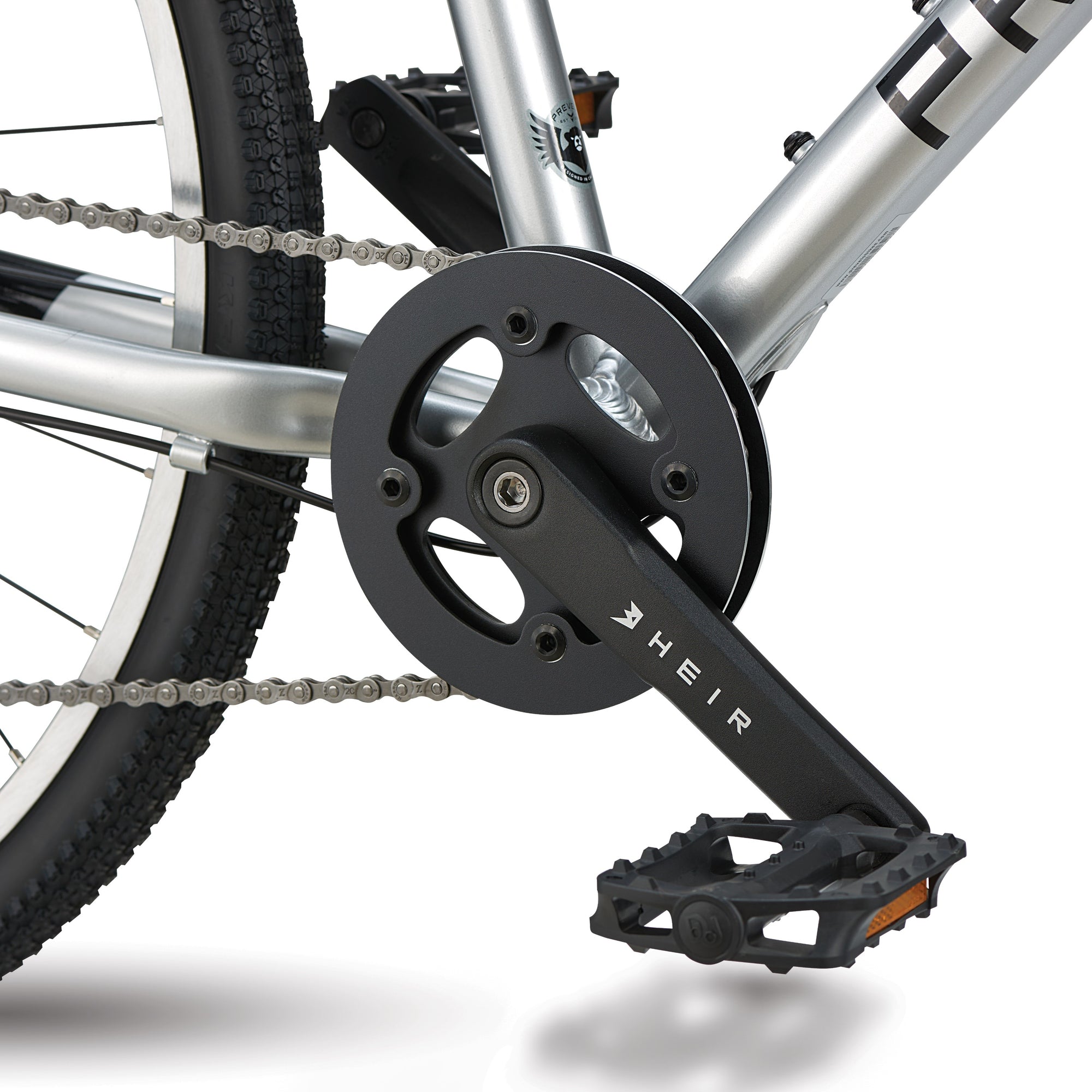

| Crank | HEIR Lightweight Aluminum 3 piece. Narrow Width, 152mm length |
| Chainring | 28T Narrow Wide with aluminum chain ring guard |
| Bottom Bracket | 68x113 Hollow Square Taper with Sealed Cartridge Bearings |
| Headset | 1⅛" Integrated Threadless Sealed Cartridge |
| Rims | Doublewall Aluminum, tubeless compatible |
| Front Hub | 28h Aluminum Sealed Cartridge with Quick Release Skewer |
| Rear Hub | 28h Aluminum Sealed Cartridge with Hex Key Skewer |
| Tires | Kenda Small Block Eight 26 x 1.95 Folding 60 TPI |
| Saddle | Prevelo 1pc Junior+ |
| Seat Post | ⌀31.6mm alloy 1 piece |

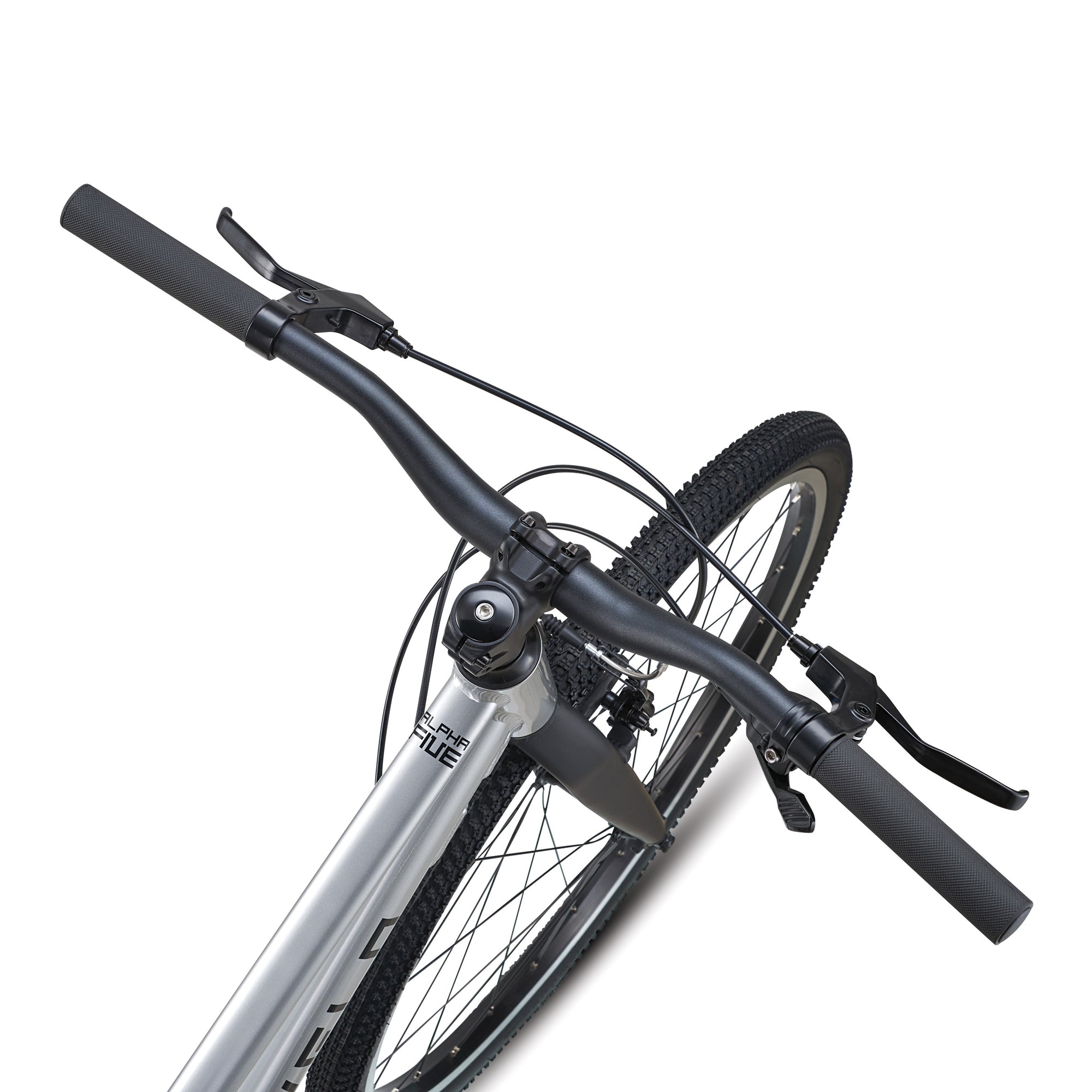

| Handlebar | Lightweight Aluminum 31.8, 640mm wide, 25mm rise |
| Stem | Lightweight Aluminum 31.8, 35mm Extension |
| Grips | 130mm Black Rubber 22.2mm diameter Lock-On |
| Pedals | Composite Junior, 9/16 Crmo Spindle |
| Version | MK III |
Measurements
| Weight | 21.5 lbs |
|---|---|
| Recommended Inseam | 25" to 30" |
| Minimum Saddle Height | 28 in / 712mm |
| Maximum Saddle Height | 33.8 in / 860mm |
| Gain Ratio | 1.66 - 5.71 |
| Max Tire Width | 2.2 in |
Geometry
| Wheel Diameter | 26 in |
|---|---|
| Wheelbase | 40.75 in / 1035 mm |
| Chain Stay Length | 16.9 in / 430 mm |
| Head Angle | 68° |
| Seat Tube Angle | 74° |
| Seat Tube Length | 14.57 in / 370 mm |
| Effective Top Tube | 20.82 in / 529 mm |
| Bottom Bracket Drop | 1.9 in / 48 mm |
| Stack | 20.39 in / 518 mm |
| Standover | 22.44 in / 570 mm |
| Q Factor | 146mm |
| Reach | 14.96 in / 380mm |
Shipping Weights & Dimensions
| Box Dimensions | 53.5 in x 8.3 in x 26.9 in |
|---|---|
| Shipping Weight | 30.4 lb |
Specifications and components are subject to variations and change without notice.
Hill Conquering Gear Range
Promax Hydraulic Disc Brakes
Tubeless Capable Double Wall Rims
Protected Flat Mount Rear Caliper
Rider Supply Pod Ready
Confidence Inspiring Geometry
