HEIR Fork

$465.00

Heir

Quite possibly the best youth air fork in the universe.

Features

  • 1⅛" Alloy steerer tube
  • HM Carbon Fiber / AL6061 Lower
  • AL7050 Hard Anodized 30mm Stanchion
  • Adjustable damping
  • Adjustable sag
  • Lockout
Size
  • Adjustable Damping

    Dial in the speed of the fork's action with adjustable damping.

  • Carbon Lower

    Lightweight lower made of carbon and alloy combined for the optimum balance of weight and strength.

  • Switchable Lockout

    Turn off the squish with the flip of a handy switch.

Specs

HEIR 16 HEIR 20 HEIR 24 HEIR 26
Wheel Size 16" 20" 24"
26"
Travel 60mm 80mm 80mm 120mm
Axle QR Skewer 15 x 100 Thru Axle
(axle included)
15 x 100 Thru Axle
(axle included)
QR Skewer
Crown to Axle 330mm 400mm 430mm 495mm
Offset 40mm 40mm 40mm 40mm
Steer Tube Length
(as shipped)
155mm 265mm 265mm 178mm
Weight
(steer tube uncut)
1410g 1585g 1620g 1614g

Service Guide and Parts

HEIR Fork Service Guide
HEIR Fork Service Parts

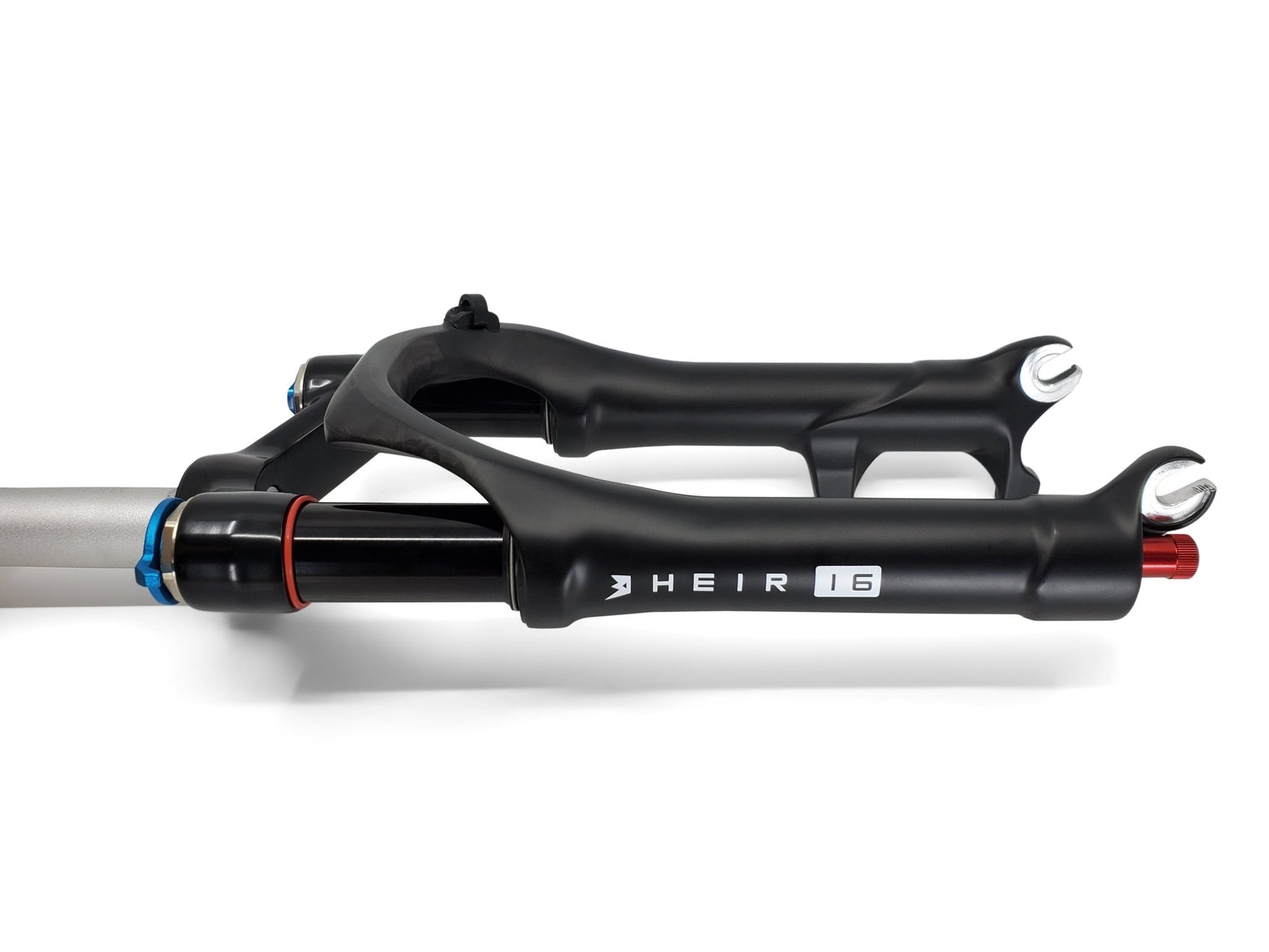

Prevelo Bikes-HEIR Fork-16" Wheel
